We deals in KIRLOSKAR MAKE PUMPS Supply
ANSI B73.1 M (ASA 150) & ISO 2858/5199
Max Capacity = 1000 m3/hr
Max Head = 150 mts
Temprature = 210°C to 260°C
Working Pressure = 2550 kpa

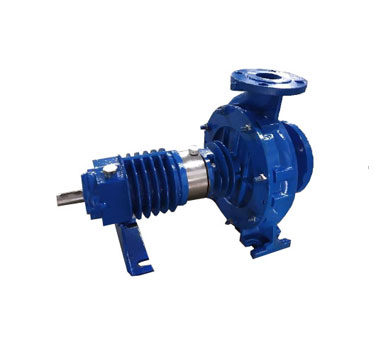

Air Cooled Thermic Fluid Pumps
- Max capacity - 350 m3/hr
- Max Head - 120 M
- Temperature - 320-350°C
- Working pressure -2550 KPa
Technical Features of Thermic Fluid Pumps
- Pump Dimensions comply to ISO 2858/5199 with Flange STD ASA 150.
- Available in Closed Impeller Construction for Higher Efficiencies.
- Wide Range of Models and MOCs available which covering the Maximum Duty Conditions.
- Maximum Temperature handling up to 350°C.
- Heat Barrier plate for better heat dissipation.
- Cooling Fins (Air-Cooled) are provided to eliminate use of External Cooling Systems.
- Oil Lubricated Bearing Housing Only, with Ball Bearings provided on the Product Side as well as the Drive Side to ensure Ease of Maintenance & Better Service Life.

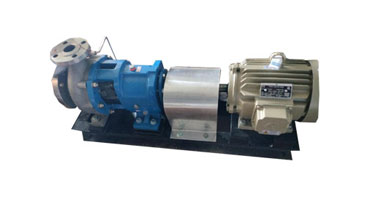

SO 2858-5199 Standard Pumps
We Deals in Solvent Transfer Pumps

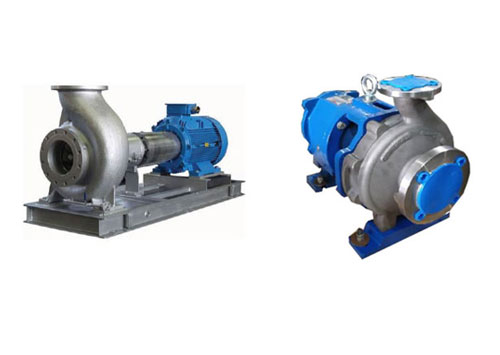

ISO 2858-5199 Standard Pumps (Closed Impeller Centrifugal Process Pumps)
- Max. Capacity - 1000 m3/hr
- Max Head - 150 M
- Temperature - 210 to 260°C
- Working Pressure - 2550 kPa
- We offer ISO 2858/5199 Pumps in various Materials of Construction with Closed Impellers as the construction of the pump for all Clear liquid Handling in the Chemical Industries.
- Pumps with the above standard are all Grease Lubricated to have a much better life for the Bearings hence reducing the sound and vibrations in the Pumps.
- These Pumps can fit various kinds of mechanical seals.

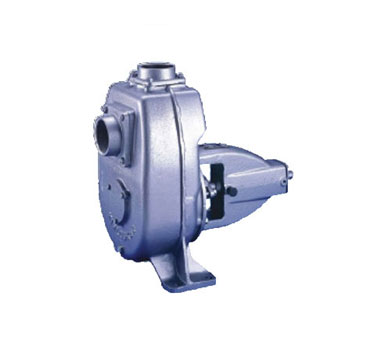

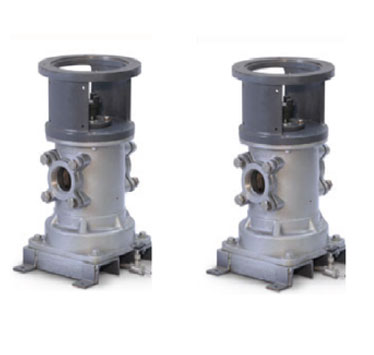

Solvent Transfer Pumps
- Fully open impeller for clear fluid transfer
- Self-priming 3-5 M negative suction can be handled.
- Low NPSH required
- Best suited for lifting various clear solvents from tank farms to charging vessels or simple drum unloading
- Low speed application (1450 RPM )
- High head low capacity pumps can lift Solvent fluid without cavitation.
- Standard carbon vs ceramic faces of Mechanical seals are used.
- Mechanical seal is self-cooled by fluid inside the pump
- No additional cooling arrangement required
- Suitable only for clear solvent fluids
- Trolley is for mobile operations
- Requires lesser space for installation as motor is mounted over the pump.
CHEMICALS - Sulphuric acid, Brine, Nitric acid, Sodium Hydroxide, Chloro sulphoric acid, Maleic acid, Hydrochloric acid, Ethanol, Citric acid, Acetic acid, Phosphoric acid, Sodium chloride, Ammonium chloride, Oleum, Vinyl Acetate
PETROCHEMICALS - Butadiene, Benzene, Toluene, Ammonia, Methanol, Vinyl chloride, Ethylene glycol, Maleic anhydride, Acrylonitrile, Urea, Formaldehyde, Phenol, Styrene, Ethylene oxide, Xylene
PULP & PAPERS - Shower water, White water, Chlorine dioxide, Sodium Hypochlorite, Fresh liquor, Black Liquor, Green Liquor, Dregs washer, white liquor
BRIWING - Sparge water, Hot/cold wort, Chilled water, Beer, reclaim water, MASH, blow black beer, Spent grain liquor, Alcohol transfer, Yeast brink, Sulphuric acid, Caustic PRIMARY
METAL - Copper cyanide, Sodium Cyanide, Chromic acid, Sodium Sulphate, Ferric chloride, Ferrous Sulphate, Copper sulphate, Ammonia sulphate, Silver Cyanide
GENERAL - Condensate, Deionized water, Shower water, Hot oil, Wine, Sugar cane juice, River water, Pond water, Cooling tower water
